Java Management Extensions (JMX)

Introdução

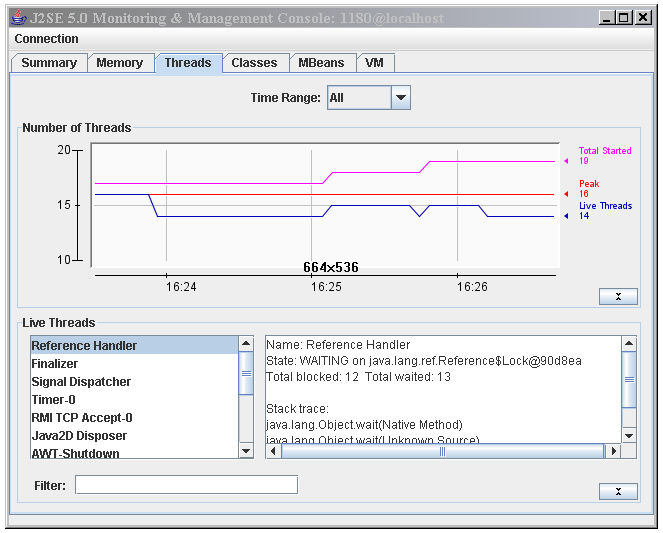

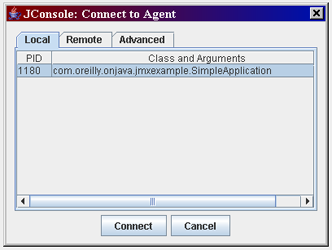

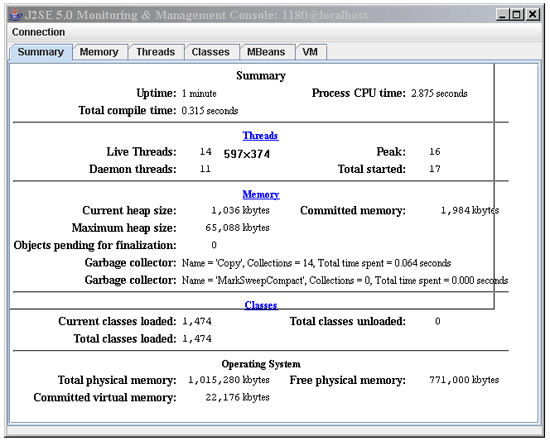

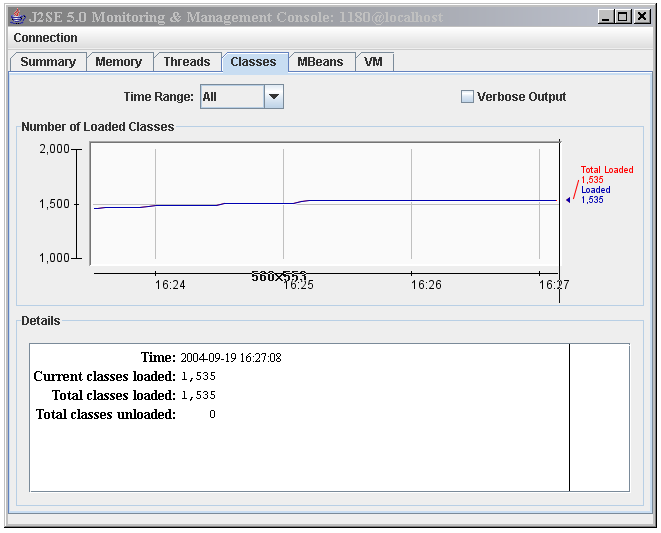

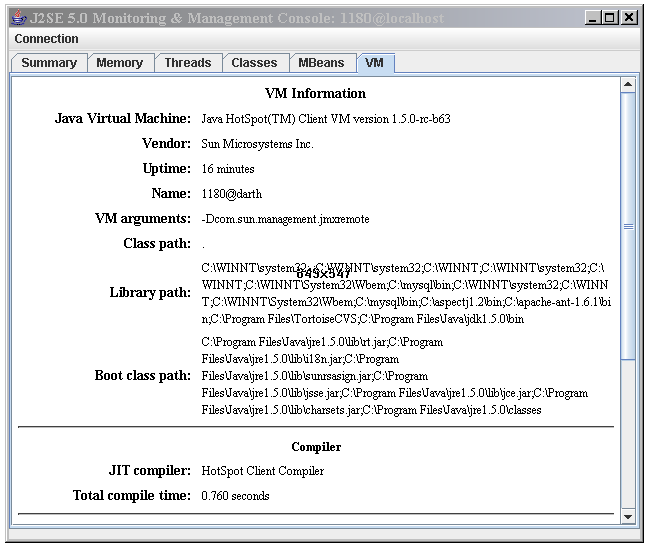

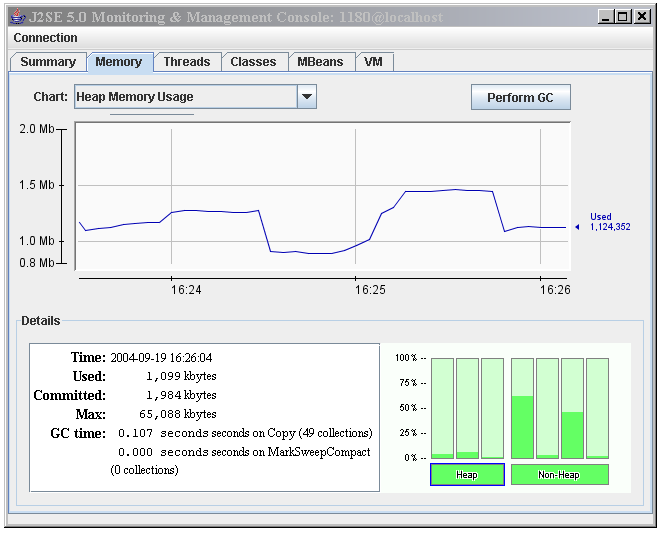

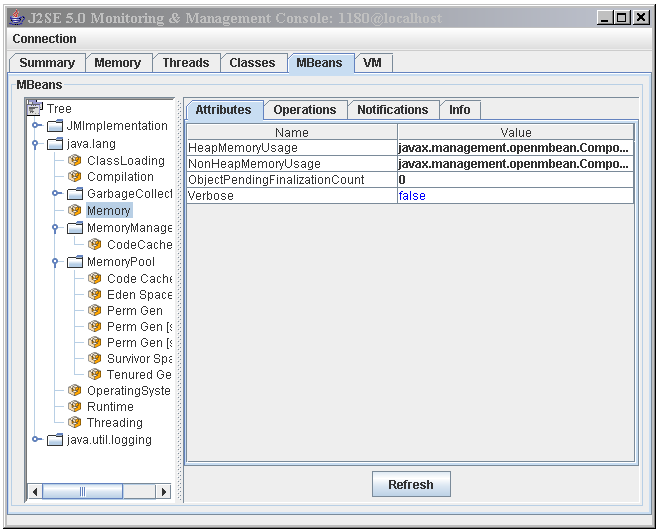

Uma demo

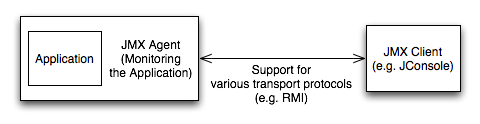

Arquitetura do JMX


Standard MBeans

A interface MBean

package com.example.mbeans;

public interface HelloMBean {

    public void sayHello();
    public int add(int x, int y);

    public String getName();

    public int getCacheSize();
    public void setCacheSize(int size);
}

Implementação de um MBean

package com.example.mbeans;

public class Hello implements HelloMBean {
    public void sayHello() {
	System.out.println("hello, world");
    }

    public int add(int x, int y) {
	return x + y;
    }

    public String getName() {
	return this.name;
    }


    public int getCacheSize() {
	return this.cacheSize;
    }

    public synchronized void setCacheSize(int size) {
	this.cacheSize = size;

	System.out.println("Cache size now " + this.cacheSize);
    }

    private final String name = "Reginald";
    private int cacheSize = DEFAULT_CACHE_SIZE;
    private static final int DEFAULT_CACHE_SIZE = 200;
}

Gerenciando um recurso

package com.example.mbeans;

import java.lang.management.*;
import javax.management.*;

public class Main {

   public static void main(String[] args) throws Exception {

      MBeanServer mbs = ManagementFactory.getPlatformMBeanServer();

      ObjectName name = new ObjectName("com.example.mbeans:type=Hello");

      Hello mbean = new Hello();

      mbs.registerMBean(mbean, name);

      System.out.println("Waiting forever...");
      Thread.sleep(Long.MAX_VALUE);
   }
}

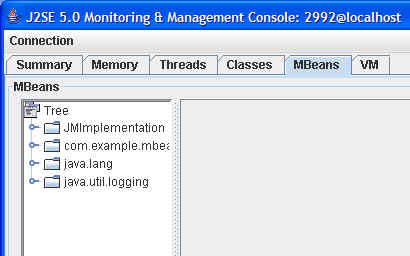

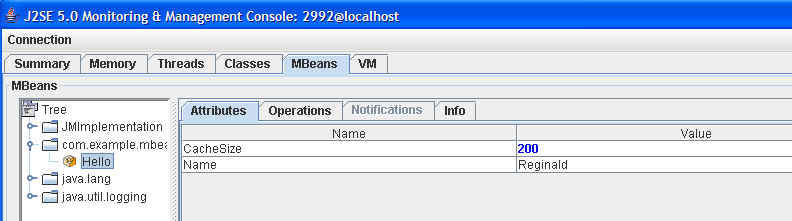

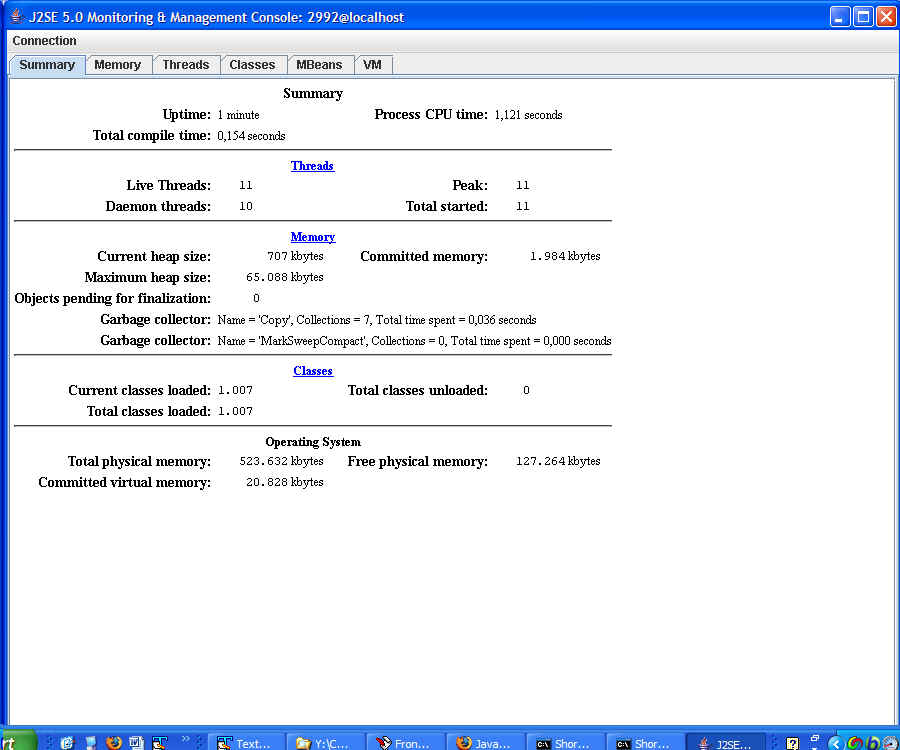

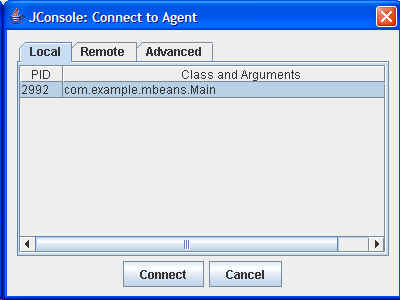

Execução do exemplo





Envio de Notificações

Interface NotificationBroadcaster

package com.example.mbeans;

import javax.management.*;

public class Hello
        extends NotificationBroadcasterSupport implements HelloMBean {

    public void sayHello() {
        System.out.println("hello, world");
    }

    public int add(int x, int y) {
        return x + y;
    }

    public String getName() {
        return this.name;
    }

    public int getCacheSize() {
        return this.cacheSize;
    }

    public synchronized void setCacheSize(int size) {
        int oldSize = this.cacheSize;
        this.cacheSize = size;

        System.out.println("Cache size now " + this.cacheSize);

        Notification n =
            new AttributeChangeNotification(this,
					    sequenceNumber++,
					    System.currentTimeMillis(),
					    "CacheSize changed",
					    "CacheSize",
					    "int",
					    oldSize,
					    this.cacheSize);

	sendNotification(n);
    }

    @Override
    public MBeanNotificationInfo[] getNotificationInfo() {
        String[] types = new String[] {
            AttributeChangeNotification.ATTRIBUTE_CHANGE
        };
        String name = AttributeChangeNotification.class.getName();
        String description = "An attribute of this MBean has changed";
        MBeanNotificationInfo info =
            new MBeanNotificationInfo(types, name, description);
        return new MBeanNotificationInfo[] {info};
    }

    private final String name = "Reginald";
    private int cacheSize = DEFAULT_CACHE_SIZE;
    private static final int DEFAULT_CACHE_SIZE = 200;

    private long sequenceNumber = 1;
}

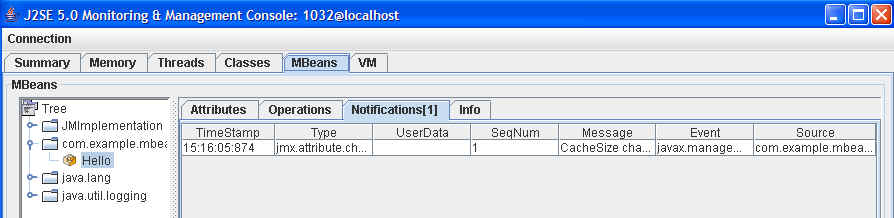

Execução do exemplo


Finalmente ...

Bibliografia
